Overview

HTTPS prevents network attackers from observing or injecting page contents. This is desirable for server applications like RaspAP — or indeed any locally hosted web application. But HTTPS requires TLS certificates, and while deploying public websites is largely a solved issue thanks to the ACME protocol and Let's Encrypt, local web servers still mostly use HTTP because no one can get a universally valid certificate for localhost.

Locally trusted certificates

Managing your own Certificate Authority (CA) is the best solution, but this usually requires an involved manual setup routine. An excellent solution for local websites is mkcert. This is a zero-config tool for making locally-trusted certificates with any name you like. mkcert automatically creates and installs a local CA in the system root store and generates locally-trusted certificates. It also works perfectly well with RaspAP. This allows you to generate a trusted certificate for a hostname (for example, raspap.local) or IP address because it only works for you.

raspap.local

Here's the twist: it doesn't generate self-signed certificates, but certificates signed by your own private CA. This tool does not automatically configure servers or mobile clients to use the certificates though. There are some steps for macOS and Windows are covered in the Client Configuration section below.

Read more about mkcert here and follow the project on GitHub.

Creating a certificate

There are two options to go about creating a self-signed certificate with mkcert: 1) manually, or 2) with the 'Quick Installer'. Both methods are described below.

Follow the steps below to generate and install a locally-trusted certificate for RaspAP. The local domain raspap.local is used in the examples below. You may substitute this with the default raspberrypi.local or your own hostname.

Tip

If you've changed your hostname prior to starting this process, be sure to reboot your device for the change to take effect.

Start by installing the pre-built binary for Arch Linux ARM on your Raspberry Pi:

sudo wget https://github.com/FiloSottile/mkcert/releases/download/v1.3.0/mkcert-v1.3.0-linux-arm -O /usr/local/bin/mkcert
sudo chmod +x /usr/local/bin/mkcert
mkcert -install
You should see output like the following:
Using the local CA at "/home/pi/.local/share/mkcert" ✨
The local CA is now installed in the system trust store! ⚡️
Generate a certificate for raspap.local:
cd /home/pi
mkcert raspap.local "*.raspap.local" raspap.local
You should see output like the following:
Using the local CA at "/home/pi/.local/share/mkcert" ✨

Created a new certificate valid for the following names 📜
- "raspap.local"
- "*.raspap.local"
- "raspap.local"

Reminder: X.509 wildcards only go one level deep, so this won't match a.b.raspap.local ℹ️
The certificate is at "./raspap.local+2.pem" and the key at "./raspap.local+2-key.pem" ✅
Next, combine the private key and certificate:
cat raspap.local+2-key.pem raspap.local+2.pem > raspap.local.pem
Create a directory for the combined .pem file in lighttpd:
sudo mkdir /etc/lighttpd/ssl
Set permissions and move the .pem file:
chmod 400 /home/pi/raspap.local.pem
sudo mv /home/pi/raspap.local.pem /etc/lighttpd/ssl
Edit the lighttpd configuration with sudo nano /etc/lighttpd/lighttpd.conf. Add the following block to enable SSL with your new certificate:
server.modules += ("mod_openssl")
$SERVER["socket"] == ":443" {
  ssl.engine = "enable"
  ssl.pemfile = "/etc/lighttpd/ssl/raspap.local.pem"
  ssl.ca-file = "/home/pi/.local/share/mkcert/rootCA.pem"
  server.name = "raspap.local"
  server.document-root = "/var/www/html"
}

Optionally, you can redirect all HTTP requests to HTTPS like so:

$SERVER["socket"] == ":80" {
  $HTTP["host"] =~ "(.*)" {
    url.redirect = ( "^/(.*)" => "https://%1/$1" )
  }
}
Save your changes and quit out of the editor with Ctrl+X followed by Y and finally Enter.

Restart the lighttpd service:

sudo systemctl restart lighttpd
Verify that lighttpd has restarted without errors:
sudo systemctl status lighttpd
You should see a response like the following:
● lighttpd.service - Lighttpd Daemon
    Loaded: loaded (/lib/systemd/system/lighttpd.service; enabled; vendor preset: enabled)
    Active: active (running) since Sun 2023-03-26 10:09:46 CEST; 5 days ago
  Main PID: 1080 (lighttpd)
      Tasks: 6 (limit: 779)
        CPU: 5min 17.332s
    CGroup: /system.slice/lighttpd.service
            ├─1080 /usr/sbin/lighttpd -D -f /etc/lighttpd/lighttpd.conf
            ├─1168 /usr/bin/php-cgi
            ├─1185 /usr/bin/php-cgi
            ├─1186 /usr/bin/php-cgi
            ├─1187 /usr/bin/php-cgi
            └─1188 /usr/bin/php-cgi

Mar 30 18:23:38 raspap lighttpd[1433]: Syntax OK
Mar 30 18:23:38 raspap systemd[1]: Started Lighttpd Daemon.
Now, copy rootCA.pem to your lighttpd web root:
sudo cp /home/pi/.local/share/mkcert/rootCA.pem /var/www/html

Important

Do not share the private key file (default name is rootCA-key.pem).

Finish by following the client configuration steps below.

The Quick Installer may also be used to generate SSL certs with mkcert. The installer automates the manual steps described above, including configuring lighttpd with SSL support. It's recommended to review these steps to have an idea of what is happening behind the scenes.

Invoke the Quick installer and specify the -c or --cert option, like so:

curl -sL https://install.raspap.com | bash -s -- --cert

Note

Executing the Quick installer only installs mkcert and generates an SSL certificate with the input you provide. It does not (re)install RaspAP.

$ curl -sL https://install.raspap.com | bash -s -- --cert


888888ba                              .d888888   888888ba
88     8b                            d8     88   88     8b
a88aaaa8P' .d8888b. .d8888b. 88d888b. 88aaaaa88a a88aaaa8P
88    8b. 88    88 Y8ooooo. 88    88 88     88   88
88     88 88.  .88       88 88.  .88 88     88   88
dP     dP  88888P8  88888P  88Y888P  88     88   dP
                            88
                            dP      version 3.2.1

The Quick Installer will guide you through a few easy steps


RaspAP mkcert: Configure a new SSL certificate
Current system hostname is raspap
Create an SSL certificate for raspap.local? (Recommended) [y/N] y
Install to lighttpd SSL directory: /etc/lighttpd/ssl? [y/N]: y
***************************************************************
A new SSL certificate for: raspap.local
will be installed to lighttpd SSL directory: /etc/lighttpd/ssl
***************************************************************
Complete installation with these values? [y/N]: y
RaspAP mkcert: Fetching mkcert binary
RaspAP mkcert: Installing mkcert
Using the local CA at "/home/pi/.local/share/mkcert" ✨
The local CA is already installed in the system trust store! 👍
Warning: "certutil" is not available, so the CA can't be automatically installed in Firefox and/or Chrome/Chromium! ⚠️
Install "certutil" with "apt install libnss3-tools" and re-run "mkcert -install" 👈

RaspAP mkcert: Generating a new certificate for raspap.local
Using the local CA at "/home/pi/.local/share/mkcert" ✨
Warning: the local CA is not installed in the Firefox and/or Chrome/Chromium trust store! ⚠️
Run "mkcert -install" to avoid verification errors ‼️
Created a new certificate valid for the following names 📜
- "raspap.local"
- "*.raspap.local.local"
- "raspap.local"

Reminder: X.509 wildcards only go one level deep, so this won't match a.b.raspap.local.local ℹ️

The certificate is at "./raspap.local+2.pem" and the key at "./raspap.local+2-key.pem" ✅

The installer will guide you through the steps of creating a certificate, as shown above. Complete the installation by following the client configuration steps below.

Client configuration

Download the root certificate to your client and add it to your system keychain. This can be achieved via one of the follwing methods:

  1. Copying the file /home/<user>/.local/share/mkcert/rootCA.pem (replacing <user> with the user you logged into via SSH) to your client via SSH or SFTP from the router a. This can also be achieved by just running cat /home/<user>/.local/share/mkcert/rootCA.pem and copying the file contents into a new file on your client system; or
  2. Simply open a browser and enter the following address, (substituting the domain name you chose in the steps above if different): http://raspap.local/rootCA.pem.
Note for Method #2 (click to expand/collapse)

In versions 3.4.0 and prior, you will need to modify the /etc/lighttpd/conf-available/50-raspap-router.conf file to allow it to be downloaded by a browser:

pi@pirouter:~ $ sudo cat /etc/lighttpd/conf-available/50-raspap-router.conf
server.modules += (
        "mod_rewrite",
)

$HTTP["url"] =~ "^/(?!(dist|app|ajax|config)).*" {
    url.rewrite-once = ( "^/(.*?)(\?.+)?$"=>"/index.php/$1$2" )
    server.error-handler-404 = "/index.php"
}

After (note the changed line with the addition of |rootCA\.pem: $HTTP["url"] =~ "^/(?!(dist|app|ajax|config|rootCA\.pem)).*" {)

pi@pirouter:~ $ sudo cat /etc/lighttpd/conf-available/50-raspap-router.conf
server.modules += (
        "mod_rewrite",
)

$HTTP["url"] =~ "^/(?!(dist|app|ajax|config|rootCA\.pem)).*" {
    url.rewrite-once = ( "^/(.*?)(\?.+)?$"=>"/index.php/$1$2" )
    server.error-handler-404 = "/index.php"
}
Restart the lighttpd service:
sudo systemctl restart lighttpd
Verify that lighttpd has restarted without errors:
sudo systemctl status lighttpd
You should see a response like the following:
● lighttpd.service - Lighttpd Daemon
    Loaded: loaded (/lib/systemd/system/lighttpd.service; enabled; vendor preset: enabled)
    Active: active (running) since Sun 2023-03-26 10:09:46 CEST; 5 days ago
  Main PID: 1080 (lighttpd)
      Tasks: 6 (limit: 779)
        CPU: 5min 17.332s
    CGroup: /system.slice/lighttpd.service
            ├─1080 /usr/sbin/lighttpd -D -f /etc/lighttpd/lighttpd.conf
            ├─1168 /usr/bin/php-cgi
            ├─1185 /usr/bin/php-cgi
            ├─1186 /usr/bin/php-cgi
            ├─1187 /usr/bin/php-cgi
            └─1188 /usr/bin/php-cgi

Mar 30 18:23:38 raspap lighttpd[1433]: Syntax OK
Mar 30 18:23:38 raspap systemd[1]: Started Lighttpd Daemon.

Examples below illustrate this process:

Note

These instructions are based from macOS Sequoia, so your instructions may differ.

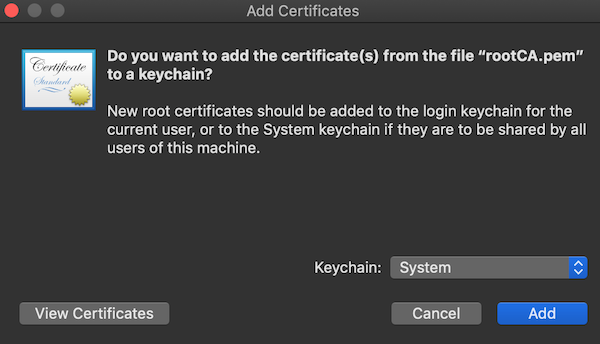

  1. Open the certificate file, and select 'Add' to the 'System' Keychain:
    Click image to expand
    ssl-macos-1

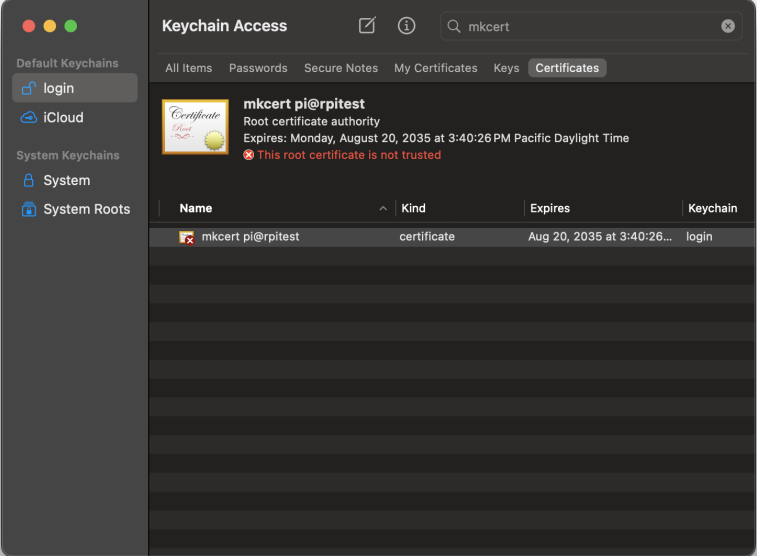

  2. Open 'Keychain' app:
    Click image to expand
    ssl-macos-1

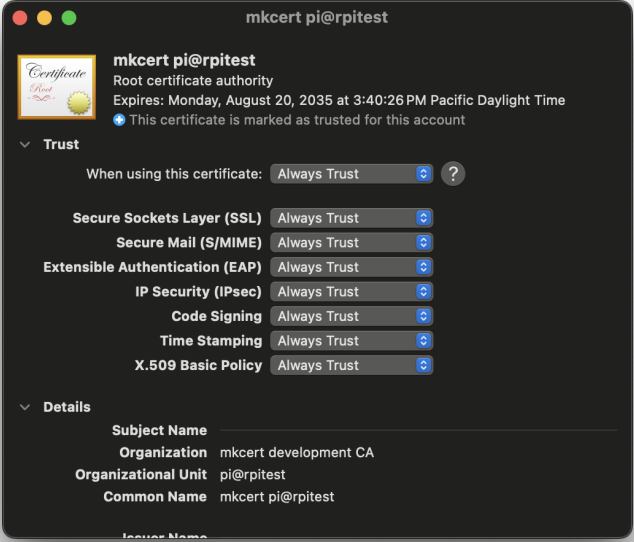

  3. Set this certificate to "Always trust" to avoid browser warnings.
    Click image to expand
    ssl-macos-1
  4. Finally, enter the address https://raspap.local in your browser and enjoy an encrypted SSL connection to RaspAP.

Note

These instructions are based from Windows 11 Home, so your instructions may differ.

  1. Rename the downloaded rootCA.pem file to rootCA.crt (note the extension changed to .crt)
  2. Double-click the rootCA.crt file to open it

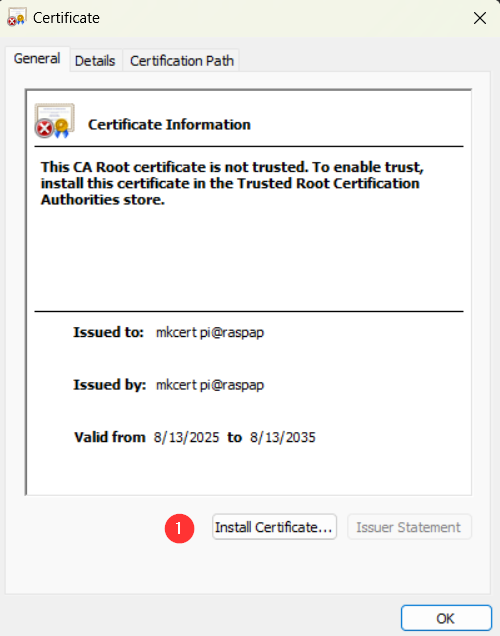

  3. On the window that opens, click the 'Install Certificate' (1) button:
    Click image to expand
    ssl-windows11-cert-install-1

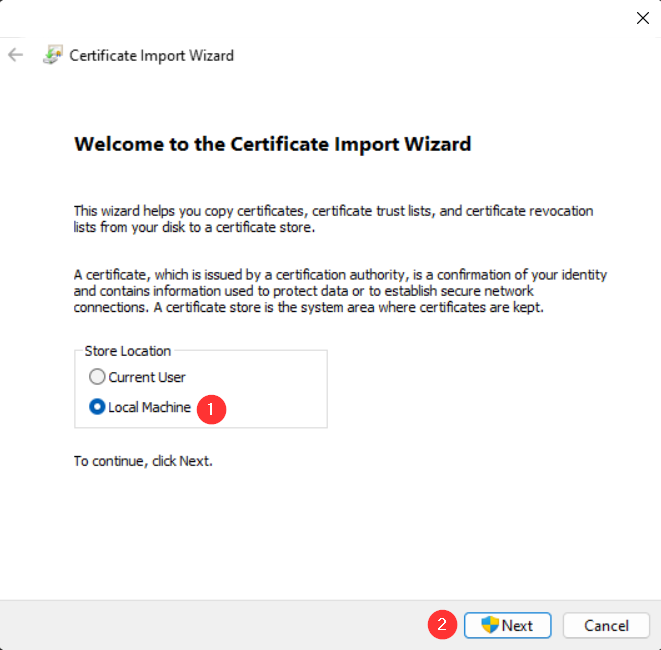

  4. Change the 'Store Location' option to 'Local Computer' (1), then click 'Next' (2) on this 'Welcome to the Certificate Import Wizard' window (Note: you will likely be presented with a 'User Access Control' window, you will want to choose 'Yes' on this):
    Click image to expand
    ssl-windows11-cert-install-2

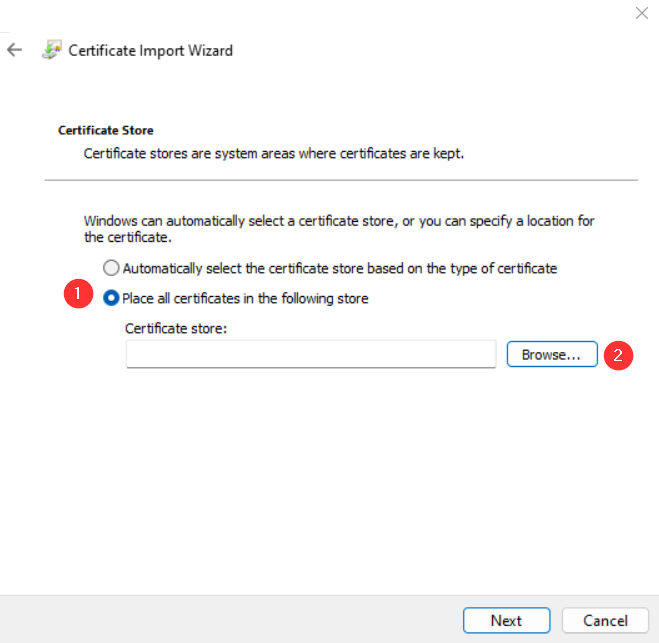

  5. Select 'Place all certificaes in the following store' (1) then click the 'Browse...' button (2) on this window:
    Click image to expand
    ssl-windows11-cert-install-3

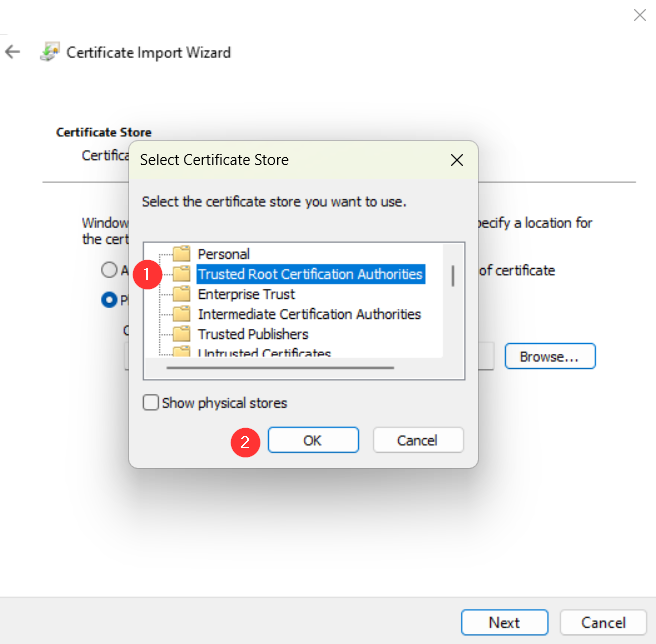

  6. Choose the 'Trusted Root Certificate Authority' (1) certificate store then click 'OK' (2) on the 'Select Certifcate Store' pop-up box:
    Click image to expand
    ssl-windows11-cert-install-4

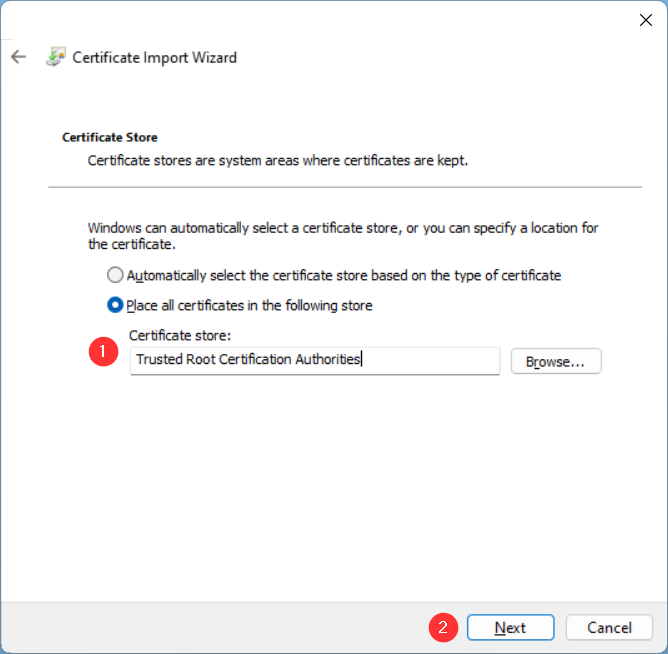

  7. Ensure that the 'Trusted Root Certificate Authority' Certificate store is in the box (1) - if not correct it by browsing to the correct one - then click the 'Next' button (2) to continue:
    Click image to expand
    ssl-windows11-cert-install-5
  8. Ensure all information is correct on this final 'Completing the Certificate Import Wizard' window - if not, repeat steps above to correct any abnormalities - then click 'Finish' (1) to complete the certificate import:
    Click image to expand
    ssl-windows11-cert-install-6
  9. You should see this window pop-up - if you do not, something went wrong, and try again from the beginning of this document:
    Click image to expand
    ssl-windows11-cert-install-7

At this point, your computer should now trust the certificate chain, and you should be able to enter the address https://raspap.local in your browser and enjoy an encrypted SSL connection to RaspAP. However, if you want to confirm the certificate is loaded correctly, you can follow the steps in this note:

Note

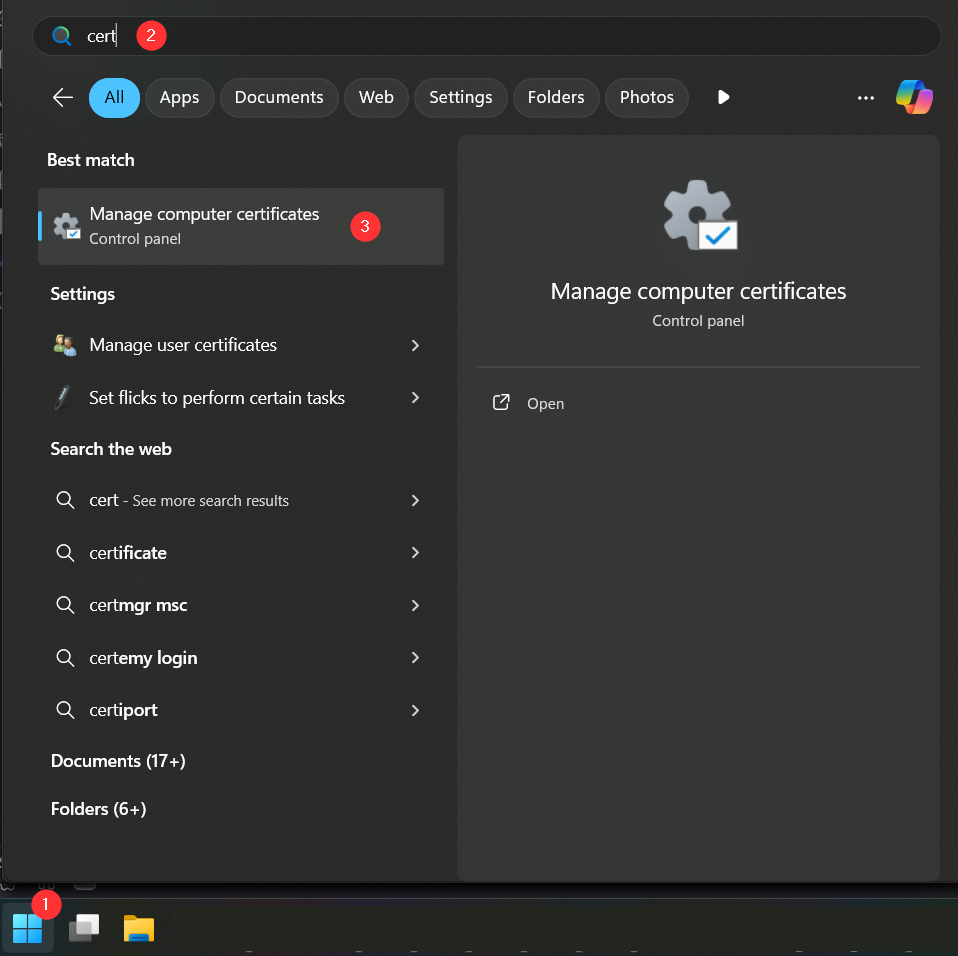

  1. If you want to ensure that the new certifcate was installed correctly, navigate to the 'Manage computer certificates' control panel tool by opening the 'Start Menu' (1) and typing in cert (2) and selecting 'Manage computer certifcates' match (3):
    Click image to expand
    ssl-windows11-start-menu-1

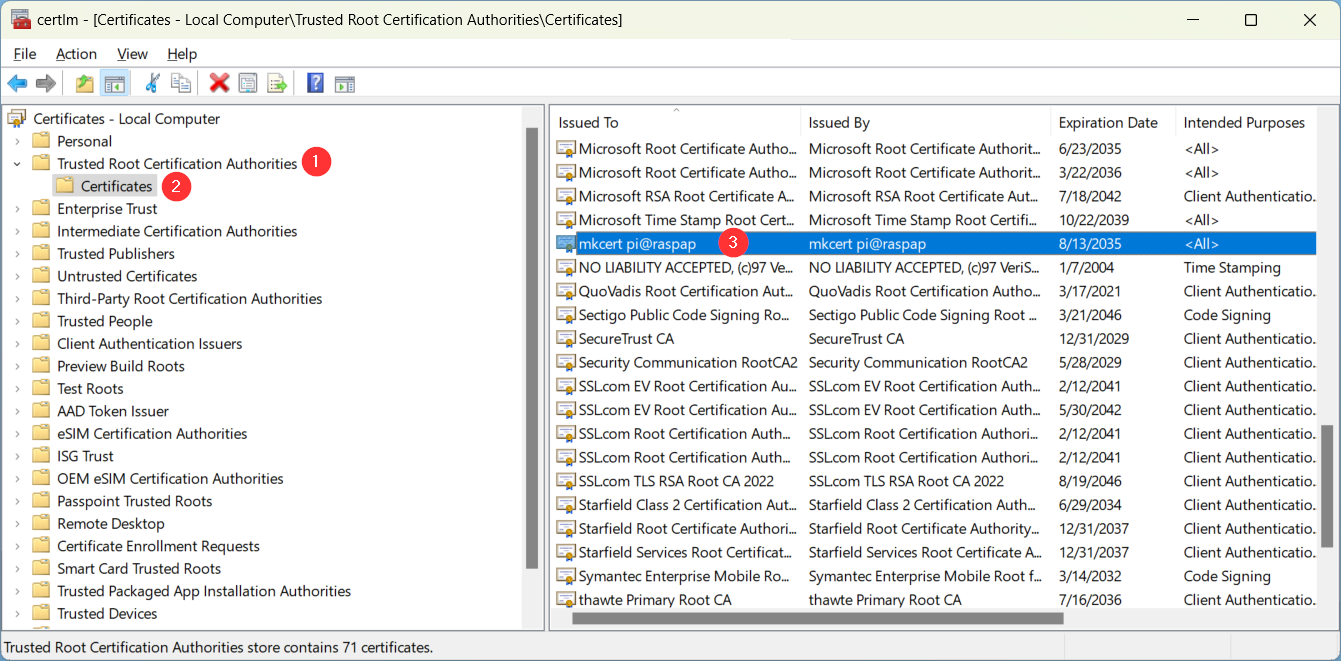

  2. In this 'Certificates' window, navigate to and expand the 'Trusted Root Certificate Authority' (1) folder, then click on the 'Certificates' (2) store, and locate the newly installed certifcate that matches the one you chose to install (3):
    Click image to expand
    ssl-windows11-cert-mgr-1

Note

These instructions are based from Ubuntu 22.04 LTS, so your instructions may differ.

  1. Run the following commands:
    sudo cp rootCA.pem /usr/local/share/ca-certificates/
sudo update-ca-certificates
    a. If you get an error when trying to run the second command, then you likely need to install the CA Certificates package:
    sudo apt update
sudo apt install ca-certificates -y
    b. Now you should be able to re-run the sudo update-ca-certificates command
  2. Enter the address https://raspap.local in your browser and enjoy an encrypted SSL connection to RaspAP.

Note

These instructions are based from iOS v18.5, so your instructions may differ. If you experience issues, please check out this mkcert post for some more information.

  1. Transfer the certificate to the device using AirDrop, email, or download using the router's link mentioned above.

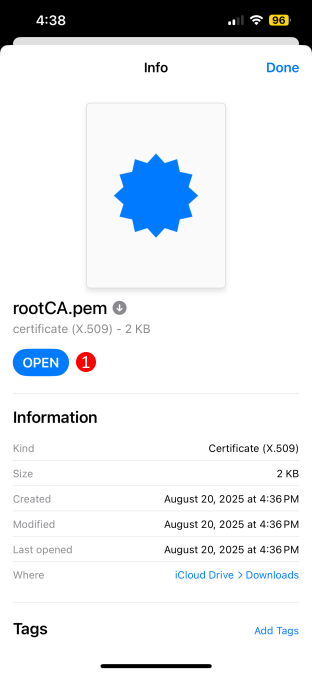

  2. Open (1) the certificate file using the Files app:
    Click image to expand
    ssl-iphone-0

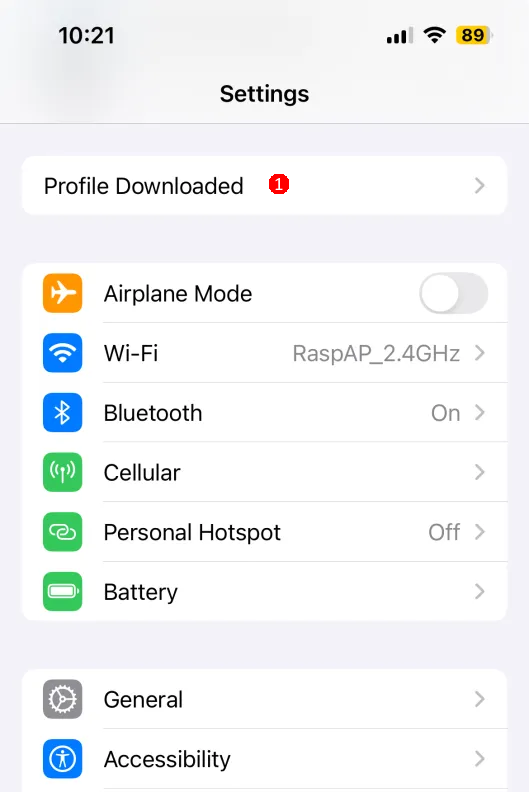

  3. Go to 'Settings', then 'Profile Downloaded' (1):
    Click image to expand
    ssl-iphone-1

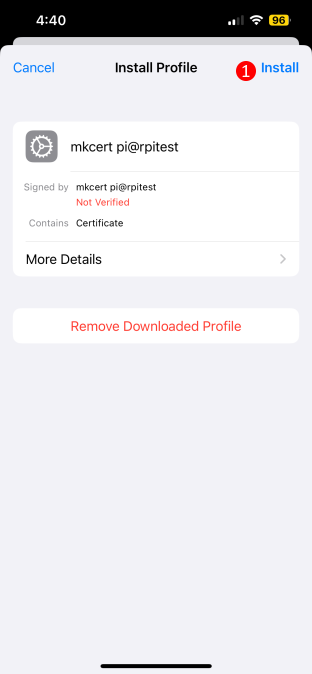

  4. Then tap 'Install' (1) on the 'Install Profile' screen:
    Click image to expand
    ssl-iphone-2
    a. Enter your device passcode if prompted

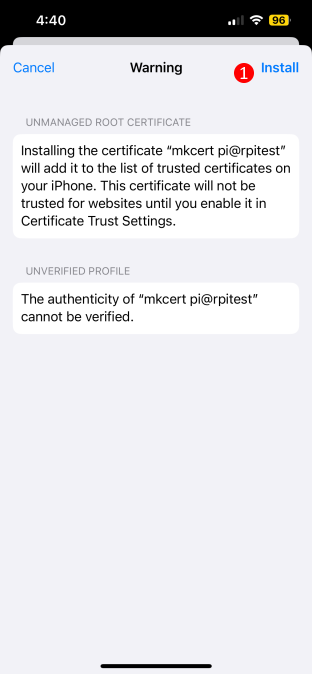

  5. Confirm by tapping 'Install' (1) again on the warning screen:
    Click image to expand
    ssl-iphone-3

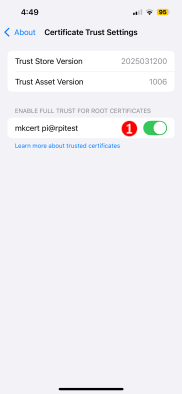

  6. Enable Full Trust for Root Certificates
    a. Go to 'Settings' → 'General' → 'About' → 'Certificate Trust Settings'
    b. Toggle the switch ON (1) next to your certificate under 'Enable Full Trust for Root Certificates'
    Click image to expand
    ssl-iphone-4
  7. Finally, enter the address https://raspap.local in your browser and enjoy an encrypted SSL connection to RaspAP.

Note

These instructions are based from Android v14, so your instructions may differ.

  1. Navigate to 'Settings'

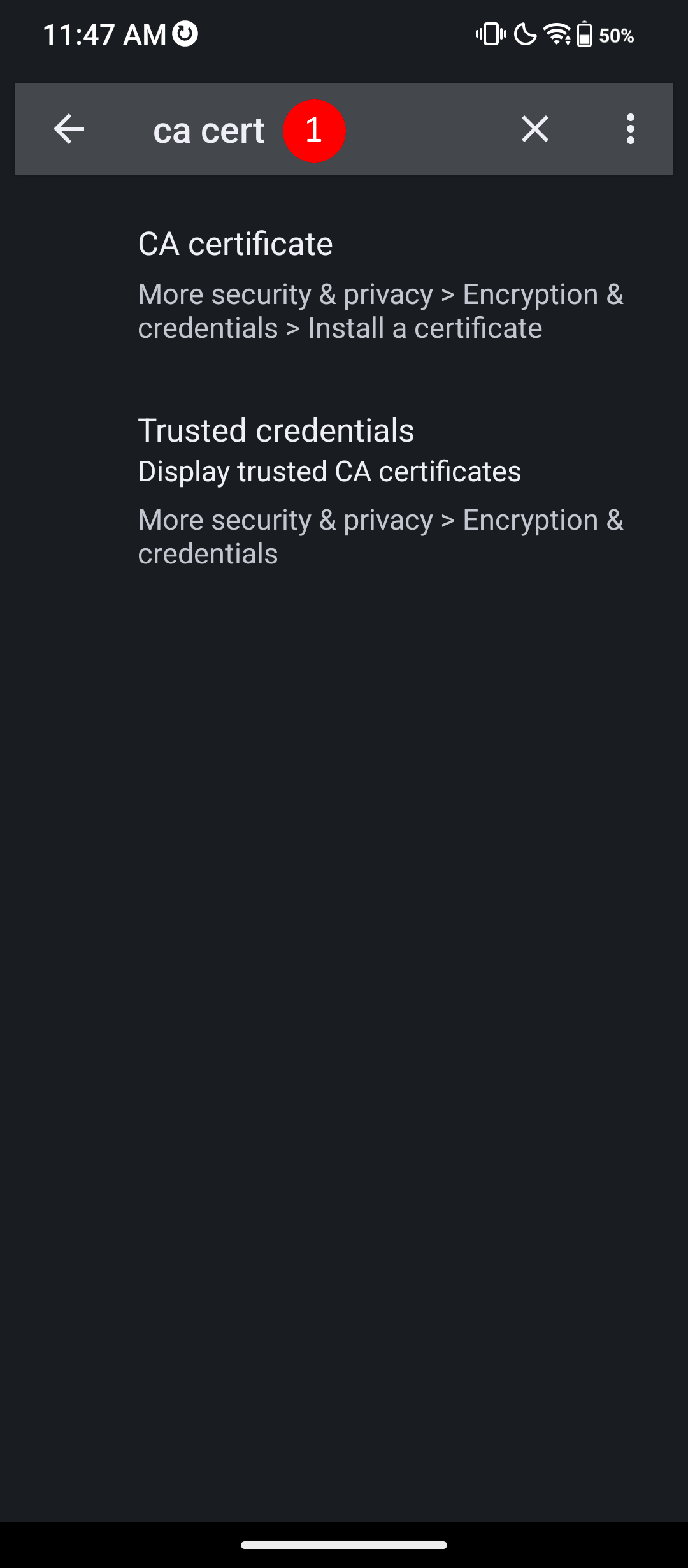

  2. Search for CA cert:
    Click image to expand
    ssl-android-0

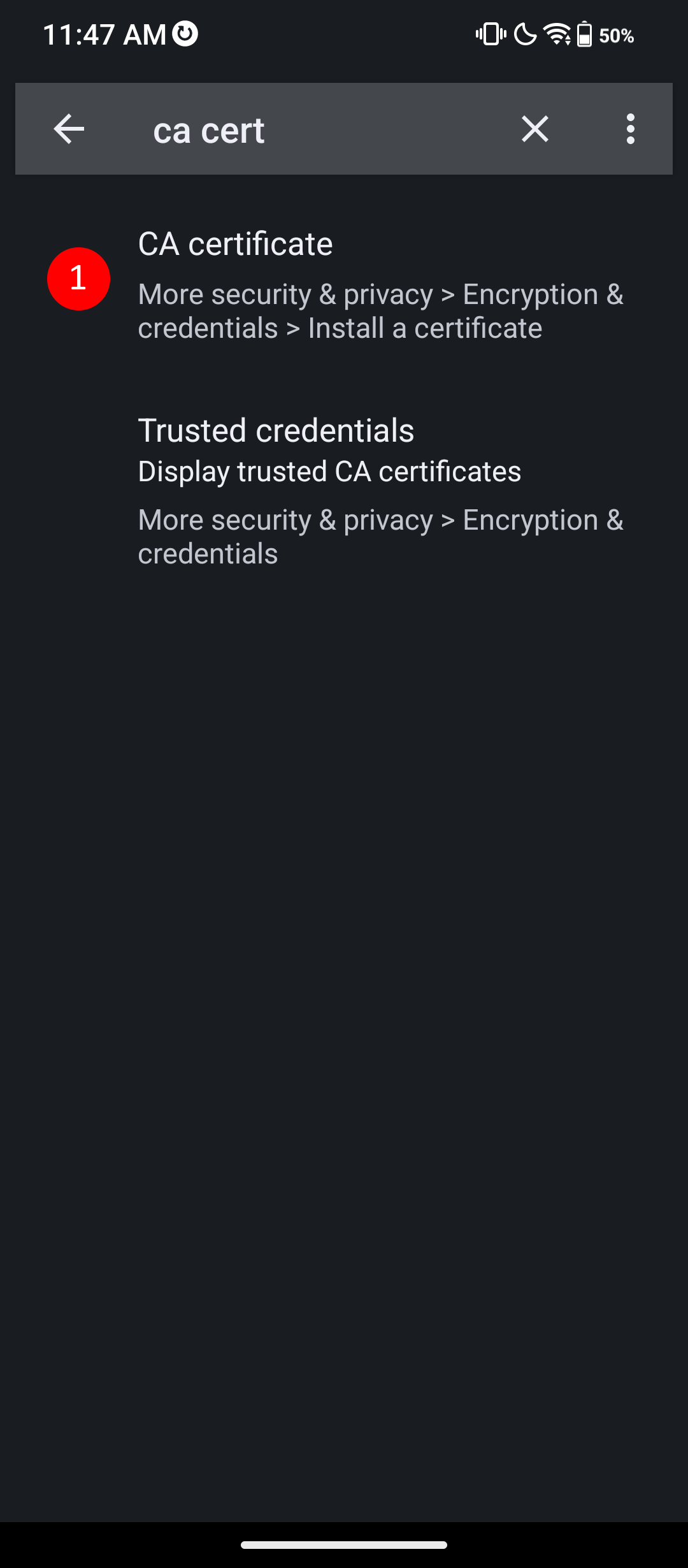

  3. Select the 'CA certificate' result (1). This should load the 'Install a Certifcate' page; if so, select 'CA certificate':
    Click image to expand
    ssl-android-1
  4. You will be presented with a warning screen. Please read it carefully, and select 'Install anyway' (1) if you agree with it:
    Click image to expand
    ssl-android-4
    Note: If you have a lock (PIN or biometric) on your device, you will likely be prompted to authenticate after selecting this

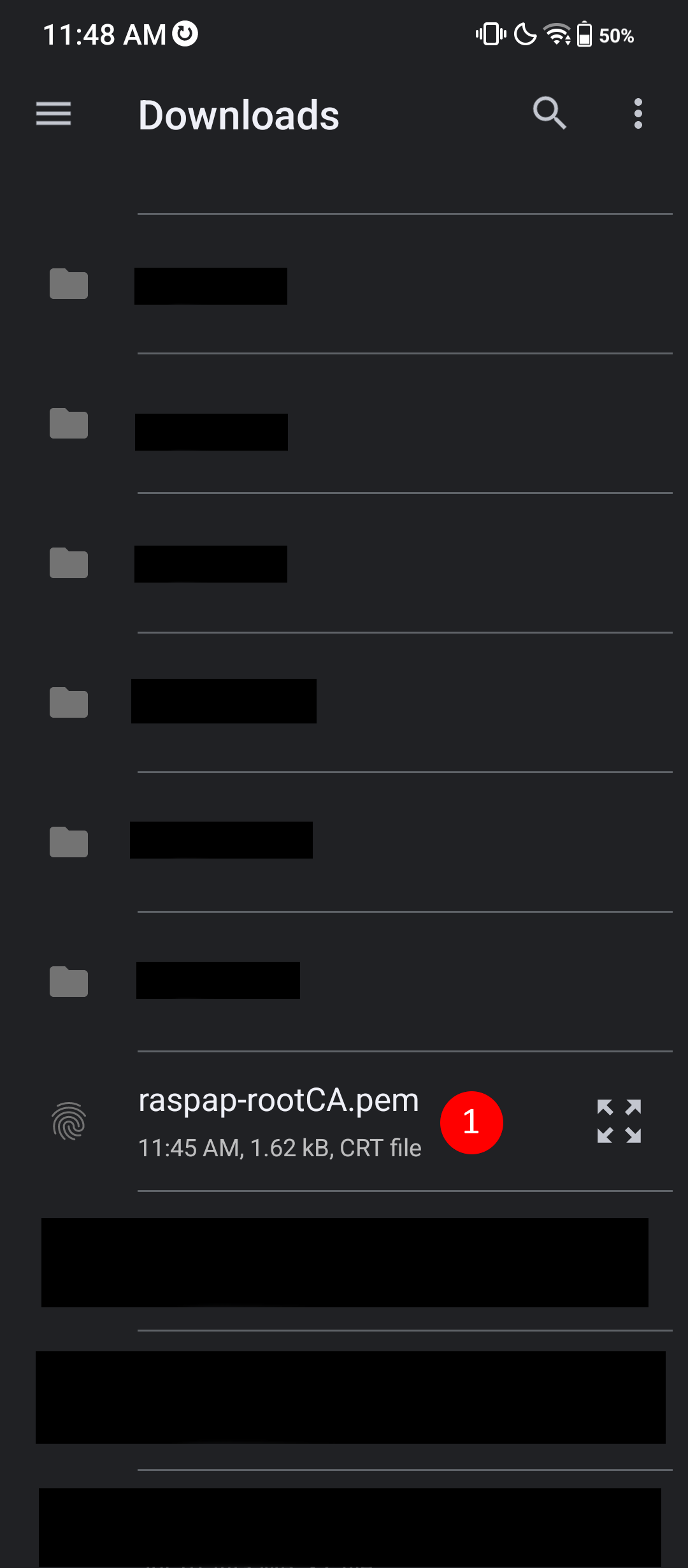

  5. Navigate to the certifcate file and select it:
    Click image to expand
    ssl-android-5

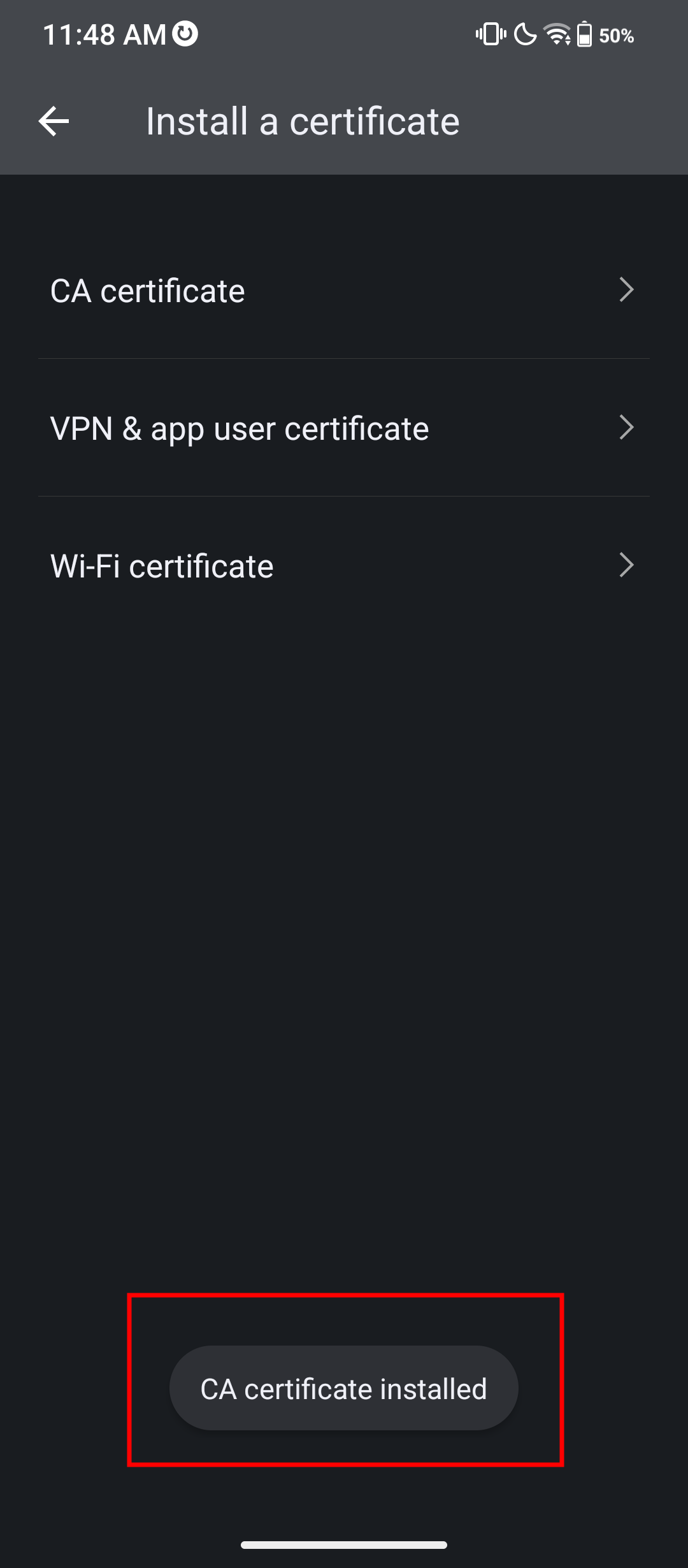

  6. You should be sent back to the 'Install a certifcate' screen, but see a message popup at the bottom saying "CA certificate installed":
    Click image to expand
    ssl-android-6

At this point, your computer should now trust the certificate chain, and you should be able to enter the address https://raspap.local in your browser and enjoy an encrypted SSL connection to RaspAP. However, if you want to confirm the certificate is loaded correctly, you can follow the steps in this note:

Note (click to expand/collapse)

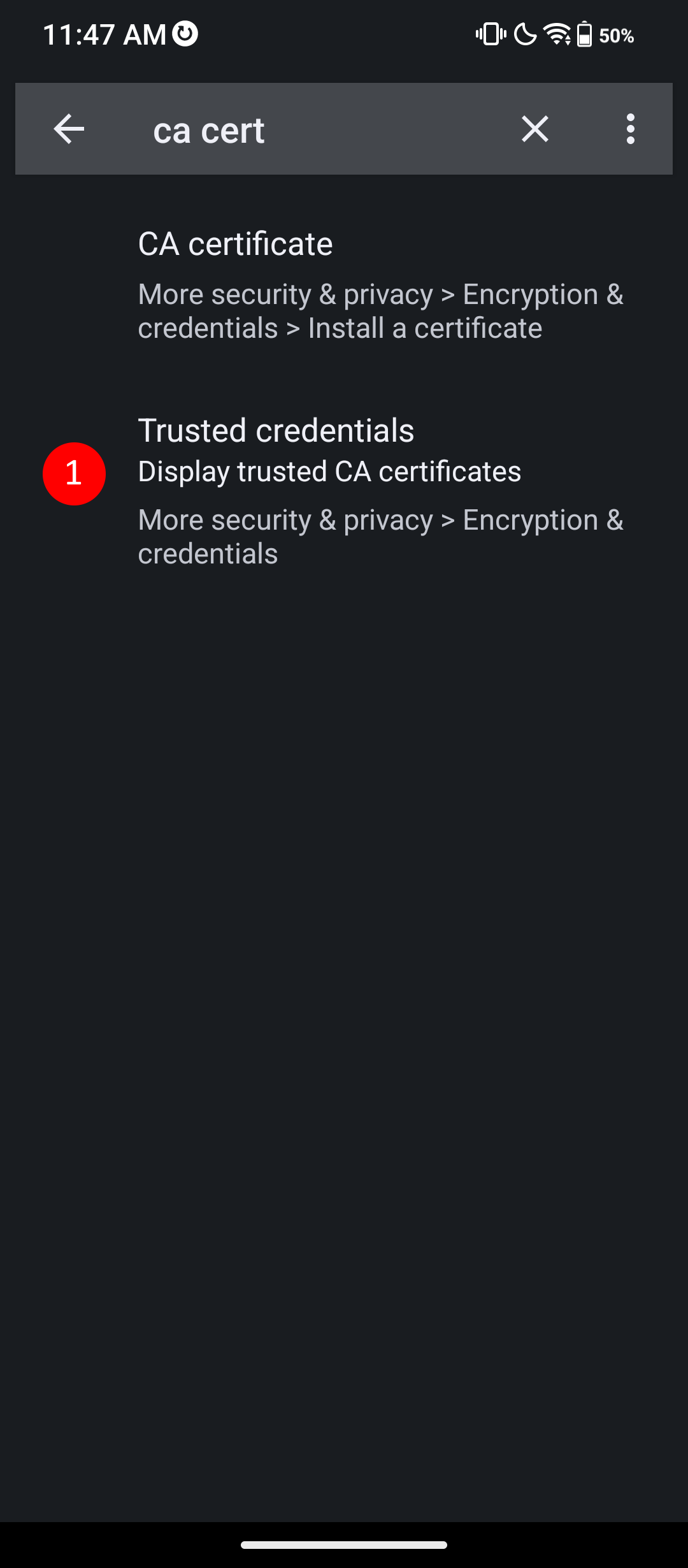

  1. In settings, under the search for CA cert, select the 'Trusted credentials' option (1):
    ssl-android-6
    Click image to expand

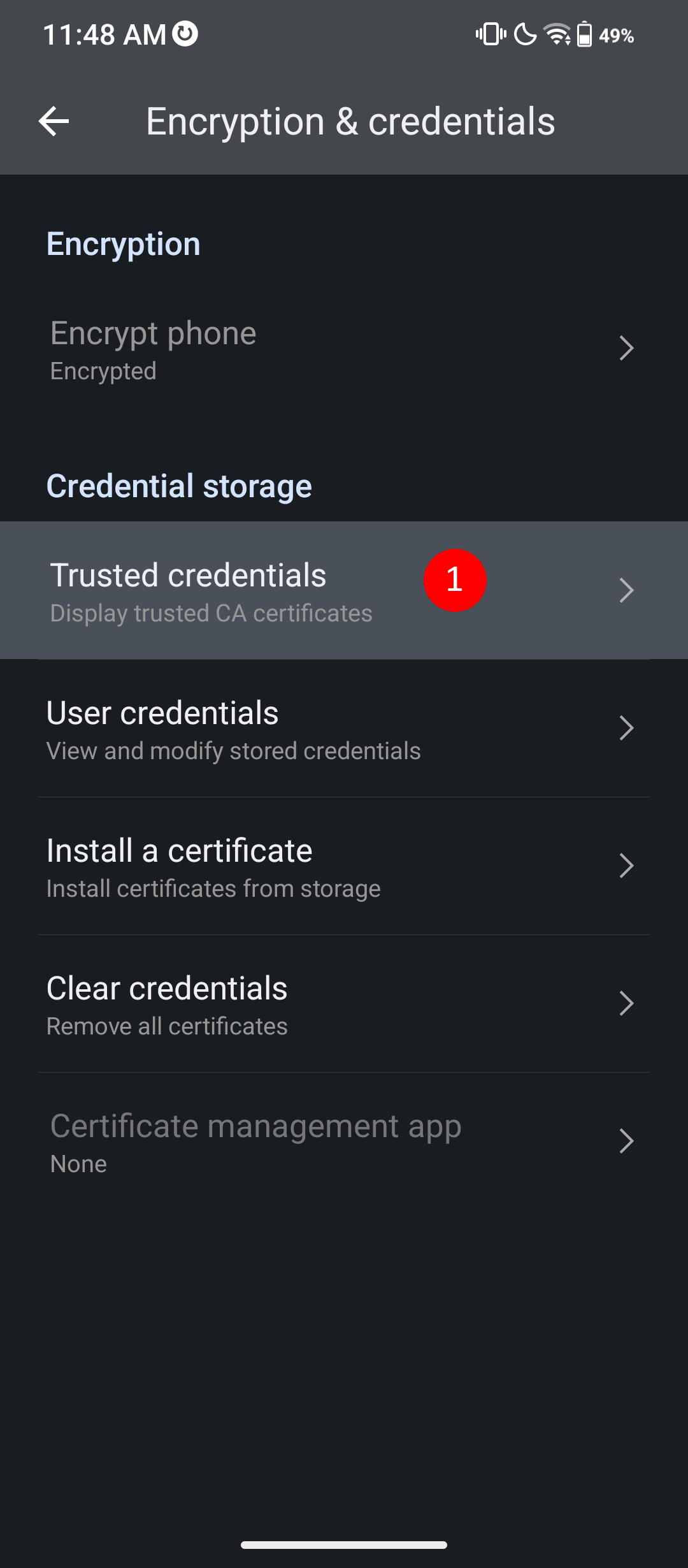

  2. This should direct you to the 'Encryption & Credentials' settings page; select the 'Trusted credentials' option (1):
    ssl-android-7
    Click image to expand
  3. On this 'Trusted credentials' page, select the 'User' button (1). You should see your installed certificate:
    ssl-android-8
    Click image to expand

More mkcert advanced topics are covered at mkcert.

Discussions

Questions or comments about using SSL certificates? Join the discussion here.
