Network devices

Overview

Experimental · Insiders only

Insiders are able to manage a variety of physical network devices as a source of data connectivity for RaspAP. Broadly, this includes devices such as tethered phones, USB modems/routers, WLAN adapters and so on. This expands the practicality of RaspAP as a truly mobile AP for travel and/or field applications.

Supported device types

The following network devices are supported:

• Ethernet interface (eth)
• Wireless adapter (wlan)
• Mobile data modem (ppp)
• Mobile data adapter with built-in router
• USB connected smartphone (USB tethering)

All devices require a driver in order to be available for use with RaspAP.

Listing detected devices

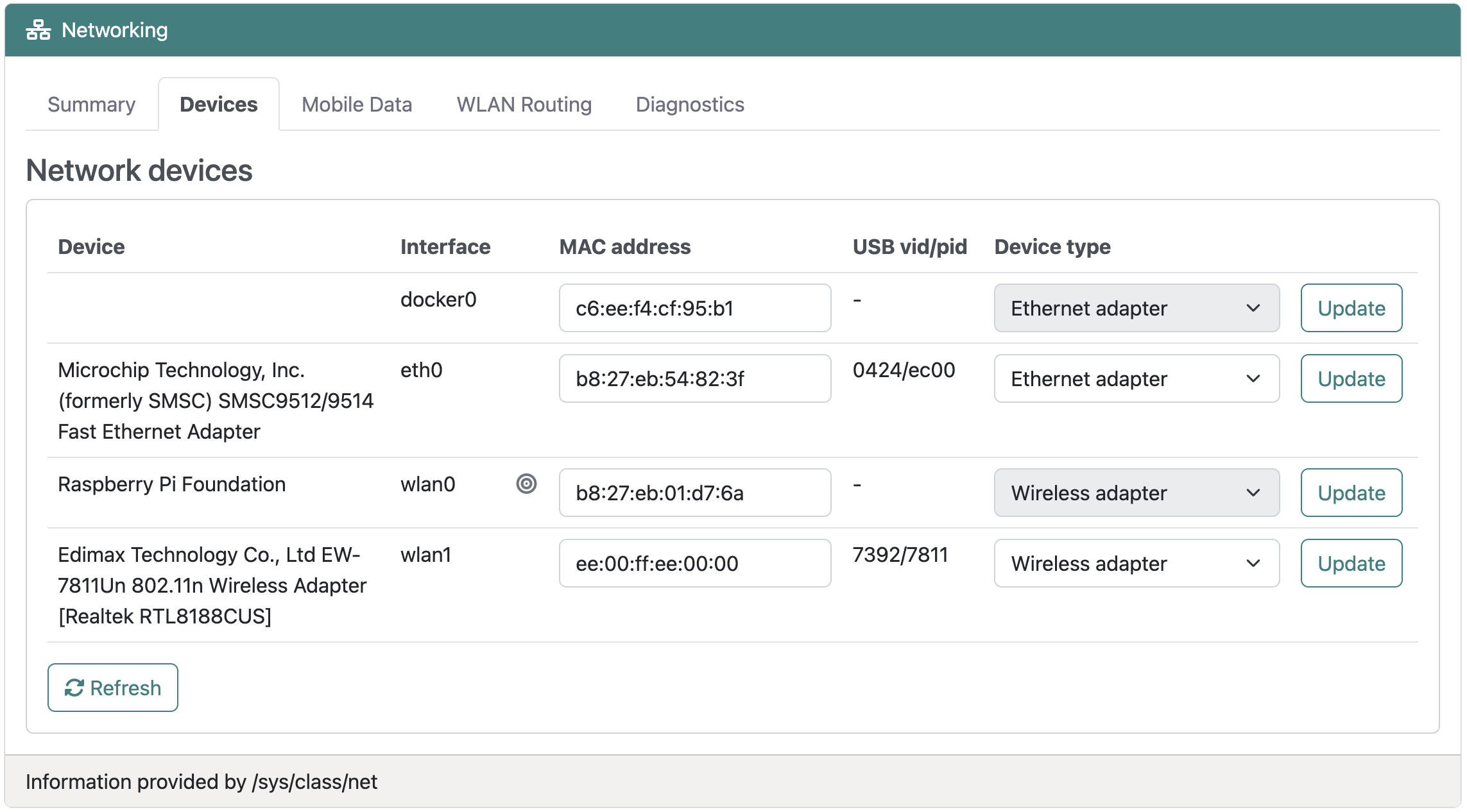

The Networking > Devices tab displays a list of available devices with their attributes and assumed adapter type. The adapter type as well as the device name may be changed. Incorrect device types might appear for some devices, which advertise themselves to the system as an ethernet (e.g. eth0) or usb (e.g. usb0) device. This often happens for USB connected phones and external routers.

Changing the device name

Changing the name helps to distinguish different devices. This is especially important if, for example, the Access Point device is connected via USB and the automatically assigned name is changed. This can sometimes occur when devices are connected in varying order.

To modify a device's name, enter a value in the Fixed name field and choose Change.

The only restriction for the device name is that it must only contain lowercase letters and numbers. The maximal length is limited to 20 characters. Devices names are automatically filtered accordingly.

Changing the MAC address

Sometimes you might need to set the MAC address of the WLAN interface to be the same as your PC or some other device on your network. This is known as MAC address cloning.

For example, some ISPs register your computer's MAC address when the service is first installed. When you place a router behind the cable or ADSL modem, the MAC address from the device WLAN port will not be recognized by the ISP.

External networking devices, like a Raspberry Pi, also have their own MAC addresses which can create authentication problems. This often occurs on guest Wi-Fi networks.

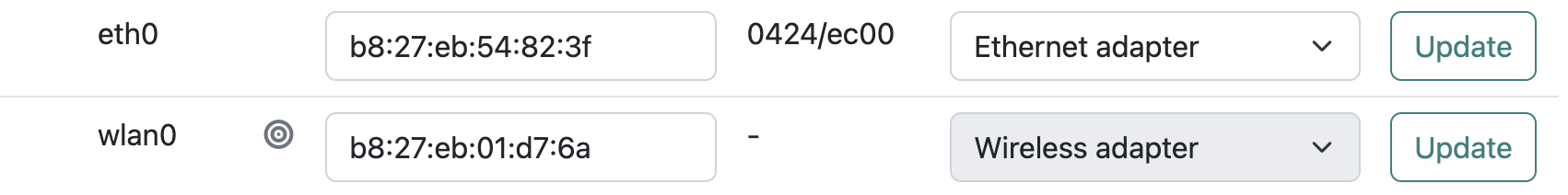

You can clone the MAC address of the WLAN interface (or any other valid interface) to be the same as your computer's MAC address. To create this configuration, follow the steps below:

1. Open the Networking > Devices tab.
2. Choose a MAC address for the interface you wish to clone.
3. Enter a valid address in the MAC field and click or tap Change.
4. The new MAC address will be configured immediately.

Note

Virtual interfaces such as OpenVPN's tun0 or WireGuard's wg0 do not have this capability. To avoid potential conflicts, change the MAC address and reconnect the device before modifying any other settings.

Ethernet interfaces

The built-in ethernet adapter as well as USB adapters are usually detected automatically. In these cases no configuration is required. Devices such as USB tethered phones might appear as an ethernet device as well. The same applies to mobile data adapters that also contain a router.

In these cases, the type may be adjusted in the device list and a name assigned to the device. This will have an effect on the network device widget shown on the dashboard.

Wireless network devices

These devices are usually listed with the automatically assigned device name prefix wlan, for example wlan0. If multiple wlan interfaces are used, it can be advantageous to assign a unique name to the device.

Wireless devices will only appear if a supported driver exists in the currently installed OS. If your device does not appear in the list, this usually indicates that a required device driver is missing. The helper script install_wlan_driver_modules.sh available in RaspAP/raspap-tools can be used to search for and install existing driver modules.

Mobile data modems

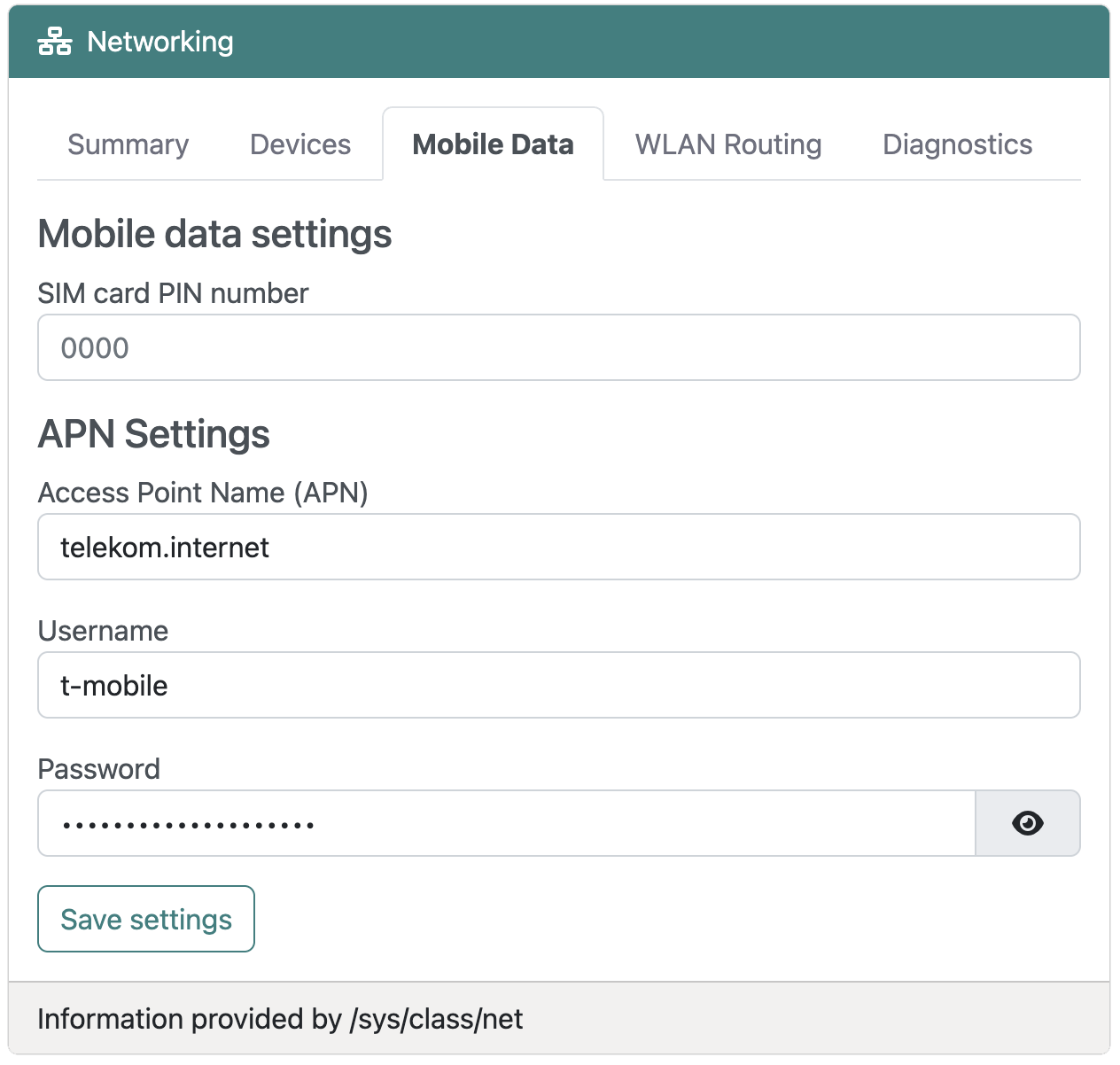

Modems or Point-to-Point Protocol (ppp) devices require login data. This includes a PIN number to unlock the SIM card, the Access Point Name (APN) and login data of your mobile network provider. These values may be entered under the Networking > Mobile Data tab.

Values entered here are stored in the file /etc/wvdial.conf. This configuration file contains the basic configuration needed to unlock the SIM card and connect to the network. This has been tested with a Huawei E1550. If your device requires different AT-commands, you will need to manually change this configuration.

When a connected modem is attached, the connection mode, signal quality and network provider will be displayed on the dashboard.

Note

The names of modems cannot be changed. The reason is that the device name ppp0 is directly coupled with the required system services.

What if my modem device doesn't appear?

In this case your connected modem device is not recognized by the OS, or it has not been switched into modem mode by usb_modeswitch. Check the log file (journalctl) for problems with the device.

Mobile data adapters with built-in routers

Mobile data USB devices which provide router functionality will usually appear as an ethernet device, for example eth1. This implies that the device has to be pre-configured to work without a PIN for the SIM card and without login data. Typically, this can be done via a browser based administration interface on any computer.

Huawei Hilink Device

A special case are Huawei Hilink devices (e.g. Huawei E3372h-320). RaspAP can communicate directly with these devices. Be sure that the administration interface is not locked with a user/password. The PIN number entered on the Networking > Mobile Data tab will be used to unlock the SIM card. In addition, connection information (mode, signal quality and network provider) are extracted from the device and displayed on the dashboard. The dashboard button to stop/start the device is active and will disconnect/connect the mobile network.

The model E3372h-320 will be detected as a Hilink device and appears with the name hilink0. Other Hilink devices require a corresponding assignment on the Networking > Devices tab.

USB tethered phones

A phone connected via USB and with USB tethering enabled will appear as either an ethernet device (e.g. eth1), or as a USB network device (e.g. usb0). Changing the device type to phone will result in a corresponding display on the dashboard. In this case the default name is phone0.

Configuration files

• All device specific settings are stored as UDEV rules in the file /etc/udev/rules.d/80-raspap-net-devices.rules.
• The templates for the UDEV rules are stored in /etc/raspap/networking/client_udev_prototypes.json. This file contains the list of recognized device types.
• Mobile data settings are stored in: /etc/raspap/networking/mobiledata.ini
• Modem AT-commands and login data are stored in: /etc/wvdial.conf

Diagnostics

A built-in tool to evaluate network performance is available on the Networking > Diagnostics tab. This permits testing of both local network throughput (that is, data transfer over a wired or wireless interface between RaspAP and a connected client) and internet speed (data transfer between a RaspAP instance and remote host). Ping, jitter download and upload metrics are included in the test.

The remote host is RaspAP's public speedtest server located in the United States. Additional speedtest hosts distributed in other geographic centers are forthcoming.

Discussions

Questions or comments about network devices support? Join the discussion here.
